Shallow under-desk drawer with rails — SlideDesk | JLF-406

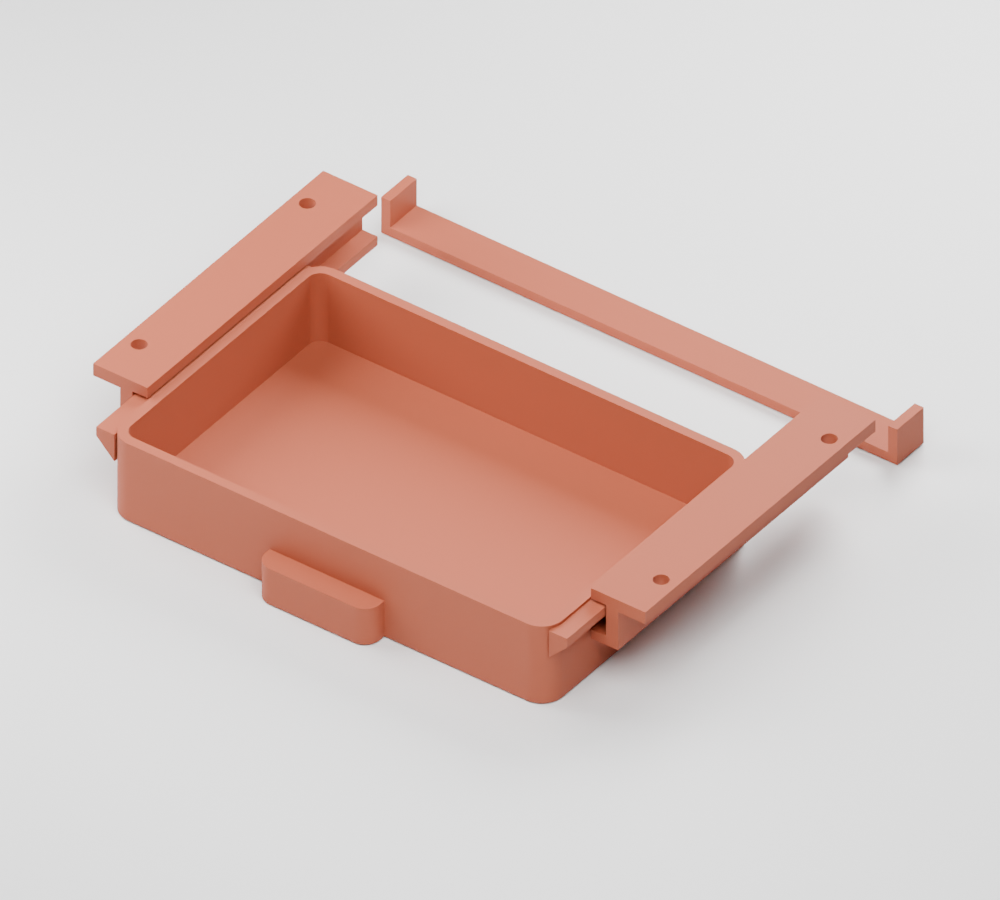

COLOR: BLACK. The supplied print is black; render colors are illustrative. Add a shallow sliding compartment beneath a wooden desk. DIMENSIONS 140 × 88 × 23 mm nominal inner wall rectangle; drawer outer width 156 mm across flanges. Rails have 10.5 mm vertical cavities. Gauge has 165 mm between stop faces. CONTENTS 4 printed pieces: 1 × shallow drawer; 1 × drawer rail; 1 × rail spacing gauge; 1 × drawer rail mirrored x. Material: PETG. SUPPLY SEPARATELY Four suitable wood screws shorter than desktop thickness. USE AND ASSEMBLY Place rail backs against the 165 mm gauge gap and align them parallel. One original rail and one mirrored rail are included; position both openings facing the drawer. Mount with four short screws. Support drawer when extending; open-ended rails have no captive stop. Images are renders of the actual CAD. Geometry and reference slicing checked digitally; physical fit, finish and service life have not been established by those checks. Printed to order. Shipping and taxes are calculated at checkout. Design: João Lutz / JoaoLutzFilm, with AI assistance.
