Open bench base for Pi 5 reference layout — PiBench | JLF-396

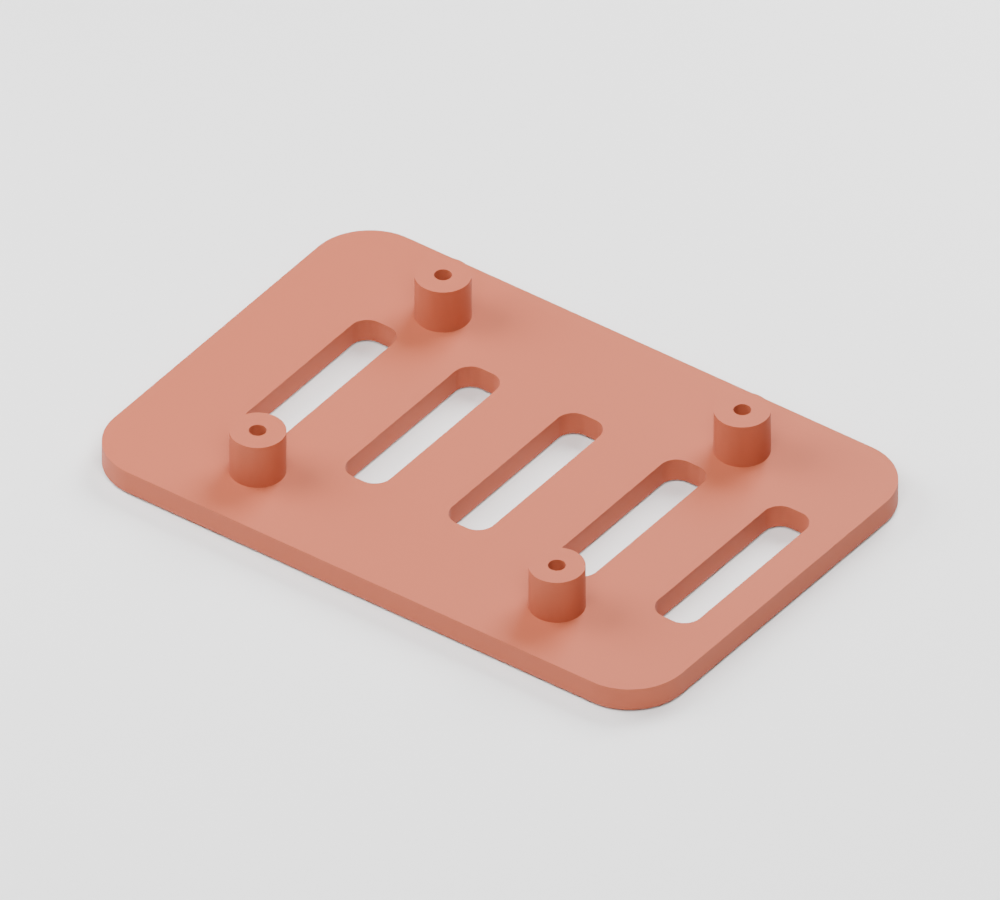

COLOR: BLACK. The supplied print is black; render colors are illustrative. Hold a Raspberry Pi 5 above a desk with open access to all board edges. DIMENSIONS Four Ø2.8 mm holes on 58 × 49 mm centres; 8 mm support bosses, official drawing reference. CONTENTS 1 printed pieces: 1 × pi5 reference bench base. Material: PETG. SUPPLY SEPARATELY Raspberry Pi 5; four M2.5 × 20 bolts, nuts and insulating washers; four insulating feet at least 6 mm high. USE AND ASSEMBLY Compare your board against the official reference drawing and measured bosses before mounting. Use insulating washers and four M2.5 × 20 bolts with nuts. Add at least 6 mm insulating feet below the base so bolt tips clear the desk. Keep the supplied cooler and airflow. Reference drawing is approximate, not a production fit certificate. Images are renders of the actual CAD. Geometry and reference slicing checked digitally; physical fit, finish and service life have not been established by those checks. Printed to order. Shipping and taxes are calculated at checkout. Design: João Lutz / JoaoLutzFilm, with AI assistance.
