Measured sofa arm tray with bolted sides — SofaDeck | JLF-436

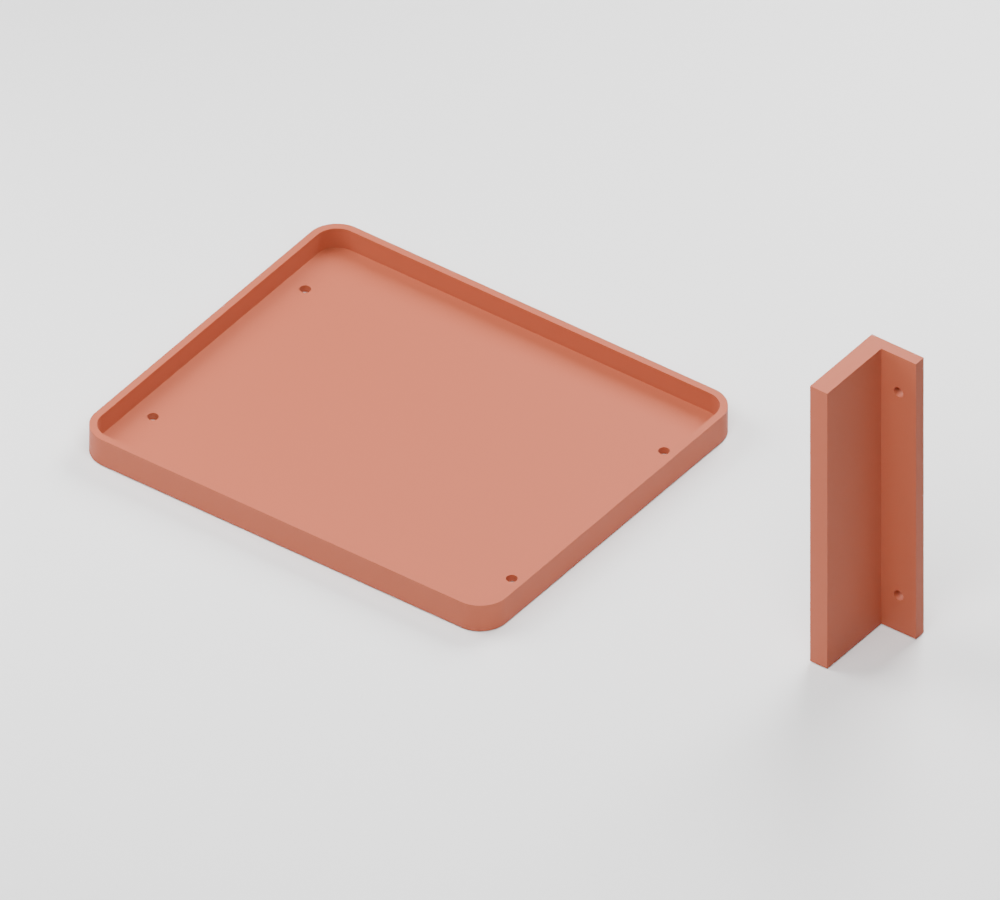

COLOR: BLACK. The supplied print is black; render colors are illustrative. Give a flat, padded sofa arm a small surface for dry pocket items. DIMENSIONS 190 × 160 mm tray; two separate screw-on side pieces. Nominal 182 mm clear arm span before padding. CONTENTS 3 printed pieces: 1 × sofa arm tray; 2 × bolted sofa side. Material: PETG. SUPPLY SEPARATELY Four M4 × 16 bolts, nuts and washers; 10 mm-thick nonslip padding; suitable sofa arm. Put bolt heads underneath, nuts inside tray. USE AND ASSEMBLY Two side pieces are included. Rotate their flanges underneath the tray, align four Ø4.4 mm holes and attach using M4 × 16 bolts, nuts and washers. Measure a flat sofa arm 174–180 mm wide, add 10 mm-thick nonslip padding below tray to clear bolt heads and check stability empty. Dry light objects only. Images are renders of the actual CAD. Geometry and reference slicing checked digitally; physical fit, finish and service life have not been established by those checks. Printed to order. Shipping and taxes are calculated at checkout. Design: João Lutz / JoaoLutzFilm, with AI assistance.
