Cold 2.54 mm pin header alignment jig — HeaderAlign | JLF-401

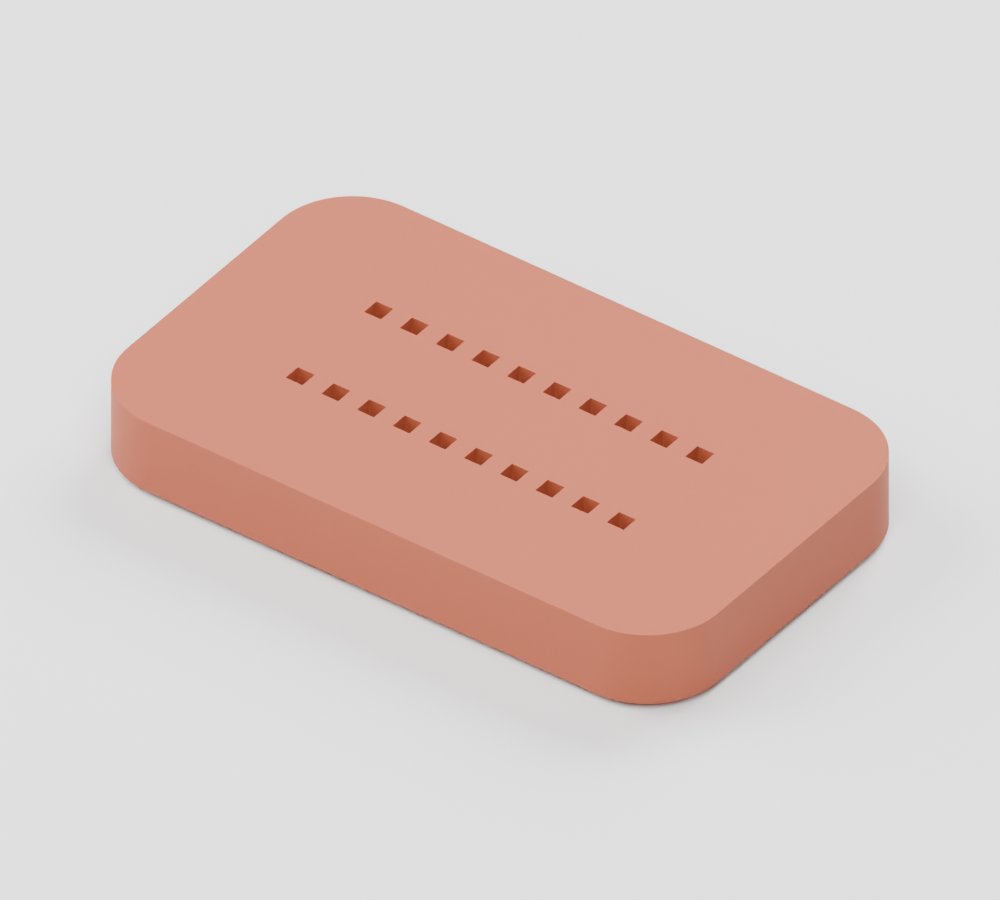

COLOR: BLACK. The supplied print is black; render colors are illustrative. Keep two rows of loose header pins square during dry assembly. DIMENSIONS 2.54 mm hole pitch; ten positions per row; 1.2 mm square through holes. CONTENTS 1 printed pieces: 1 × cold pin header jig. Material: PETG. SUPPLY SEPARATELY Loose pin headers; compare measured pin cross-section. USE AND ASSEMBLY Insert pins without force, align the assembly and remove the jig before soldering. Not heat resistant or a soldering fixture. Images are renders of the actual CAD. Geometry and reference slicing checked digitally; physical fit, finish and service life have not been established by those checks. Printed to order. Shipping and taxes are calculated at checkout. Design: João Lutz / JoaoLutzFilm, with AI assistance.
